Scaffolding & Shuttering
Reliable rental systems for smooth site execution.

Rentals

We provide reliable scaffolding and shuttering rental solutions for projects of all sizes. Our complete range of high-quality equipment is available for short-term and long-term rental requirements.

• Heavy industrial structures
• Residential and glazing projects
• Commercial and institutional buildings
• Our equipment is designed to ensure safety, durability and efficient project execution.

Channels

Indian Standard Medium Channel (ISMC) is used to support buildings under construction. These sturdy, heavy channels support construction sites and are designed to endure adverse weather conditions as well as heavy loads.

• Apex-quality channels
• Heavy load support
• Built for adverse site conditions

Cuplock Ledgers / Horizontals

Cuplock ledgers and horizontals are manufactured using 40 NB light or medium range pipe with forged ledger blades welded at the ends. Standard and customised options are available.

• Simple, robust design
• Low maintenance
• Durable standards
• Customizable as per requirement

Size in MM	Weight in KG
2000 mm	7.20 kg
1950 mm	7.00 kg
1450 mm	5.00 kg
1200 mm	4.20 kg
1150 mm	4.00 kg
950 mm	3.20 kg
850 mm	3.00 kg
550 mm	2.20 kg

Cuplock Verticals / Standards

Cuplock verticals are principal load-bearing members with top and bottom cups. Bottom cups are welded at 500/1000 mm positions and top cups can be moved and retained by a fix.

• 40 NB medium/heavy class pipes
• Drilled to fix spigot pins
• Customizable as per requirement

Size in MM	Cups @500 MM	Weight in KG
3000 mm	6/3	13.00 kg
2500 mm	5/3	11.00 kg
2000 mm	4/2	8.90 kg
1500 mm	3/2	6.50 kg
1000 mm	2/1	4.50 kg
500 mm	1/1	2.35 kg

Base Jack

Base jacks are available in different outer diameter pipe and rod options, including 34 x 650 mm and other sizes as per customer demand. Loading capacity is 5-6 tons.

• Modular scaffolding system
• Easy construction and dismantling
• Reliable heavy-duty steel usage

Size in INCH	Size in MM	Weight in KG
14 inch	355 mm	3.00 kg
18 inch	457 mm	3.50 kg
24 inch	609 mm	4.00 kg

Teleprops

Acrow props are used to support building structures temporarily. These superior-grade props are height-adjustable and made from solid iron.

• 40 NB inner pipe
• 50 NB outer pipe
• Height-adjustable support

Size in METER	Weight in KG
2 x 2 m	17.5 kg
2 x 3 m	21.5 kg

Challis

MS Challis rental services are available in a premium quality range manufactured using sophisticated machinery and quality raw materials.

• Reliable performance
• Premium quality range
• Customizable as per requirement

Length in MM	Weight in KG
3000 mm	25.00 kg
2400 mm	20.00 kg
1800 mm	15.00 kg

U-Head Jack

U-Heads are designed for adjustable scaffolding systems and are used to hold timber beams securely in place.

• Adjustable support
• Secure beam holding
• Customizable as per requirement

Size in INCH	Size in MM	Weight in KG
24 inch	609 mm	4.00 kg
18 inch	457 mm	3.50 kg
14 inch	355 mm	3.00 kg

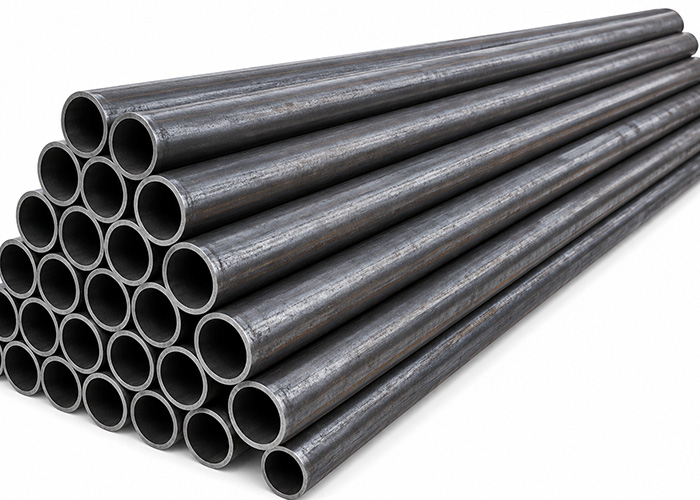

MS Pipe

MS scaffolding pipes are used in scaffolding and shuttering work and act as a base structure for formwork strengthening applications.

• 40 NB pipe
• 48 mm OD
• 3.2 mm wall thickness
• High load-carrying capacity

Shuttering Plate

Wall form panels are supplied for structures like side walls, foundations and footings. Panels are made using advanced techniques and quality-approved material.

• Robust construction
• Minimal maintenance
• Corrosion resistance
• Durable finish standards
